CAS 13463 67 7 Industrial grade Rutile titanium dioxide pigment used for outdoor coatings

CAS 13463 67 7 Industrial grade Rutile titanium dioxide pigment used for outdoor coatings

    • CAS 13463 67 7 Industrial grade Rutile titanium dioxide pigment used for outdoor coatings
    • CAS 13463 67 7 Industrial grade Rutile titanium dioxide pigment used for outdoor coatings
    • CAS 13463 67 7 Industrial grade Rutile titanium dioxide pigment used for outdoor coatings
    • CAS 13463 67 7 Industrial grade Rutile titanium dioxide pigment used for outdoor coatings
  • CAS 13463 67 7 Industrial grade Rutile titanium dioxide pigment used for outdoor coatings

    Product Details:

    Place of Origin: SHANGHAI
    Brand Name: LIangJiang Brand
    Certification: ISO/REACH/SGS/ROSH
    Model Number: R218

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Metric Ton/Metric Tons
    Price: negotiation
    Packaging Details: 25kg per plastic & paper compound bag;Pallet:40 bags per pallet (PE filmed);1x20' FCL:20 mt with pallets; 22 mt without pallets Marks:Customization available.
    Delivery Time: Within 10 workdays after payment
    Payment Terms: L/C, T/T, D/P, Western Union, D/A
    Supply Ability: 3000Ton/Tons per Month
    Contact Now
    Detailed Product Description
    Production process: Sulphuric Acid Process Place Of Origin: China
    HS: 3206111000 CAS No.: 13463-67-7
    ElNECS No.: 236-675-5 Classification: Titanium Dioxide
    Model Name: Rutile Titanium Dioxide R218 MF: Tio2
    Grade Standard: Industrial Grade Appearance: White Powder
    Color Indexing: 77891, White Pigments ISO591-1:2000: R2
    ASTM D476-84: III, IV True Specific Gravity: 4.1 G/cm3
    High Light:

    titanium dioxide powder


    titanium dioxide pigment


    CAS 13463 67 7 Industrial grade Rutile titanium dioxide pigment used for outdoor coatings


    Rutile titanium dixoide R218(universal grade)


    Basic data:

    Item titanium dioxide(TiO2)
    CAS NO. 13463-67-7
    EINECS NO. 236-675-5
    color indexing 77891, white pigments
    ISO591-1:2000 R2
    ASTM D476-84 III, IV
    Appearance white powder
    true specific gravity 4.1 g/cm3
    apparent density 0.7~1.0 g/cm3
    surface treatment Coated with Zr and Al + special organic treatments


    Typical technical index( Standard:Q/VAIP1-2010)

    Property R218
    TiO2 content % ≥94.0
    Rutile content % ≥98.0
    Color (compared with standard sample)
    ∆L*(sample-standard sample)
    not lower than
    Matter volatile at 105ºC % ≤0.5
    Matter soluble in water % ≤0.5
    Residue on sieve 45µm % ≤0.1
    PH of aqueous suspension 6.5-8.5
    Brightness % ≥96
    Oil absorption g/100g ≤21
    Tinting strength , Reynolds number ≥1800

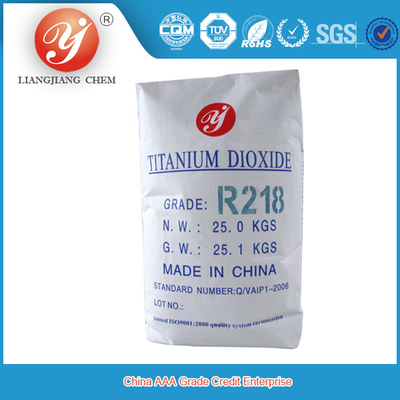

    packing specification:

    Adopted plastic woven bags or paper and plastic compound bags, net weight is 25%, or packaged as customer’s request in 500kgs or 1000kgs bags.


    Storage and transportation safety:

    Store in a cool, dry, well-ventilated area away from incompatible substances

    Wash thoroughly after handling. Remove contaminated clothing and wash before reuse. Use with adequate ventilation. Minimize dust generation and accumulation. Avoid contact with eyes, skin, and clothing. Avoid breathing dust.



    1, Liangjiang brand – rutile titanium dioxide pigment R218 is manufactured by the sulphate process and supplied as a fine, dry powder, which are inorganic coated with Al2O3&SiO2 and special organic surface treated to have both good optical properties and excellent pigment properties. With advanced control technology of particle-size and particular coating technology, the products show good whiteness, high gloss, great hiding power, strong tinting power, favorable weatherability , high chalk resistance, low oil absorption, good wetting and are easy to disperse in a variety of systems.


    Rutile Titanium Dioxide pigments R218 is general purpose products, widely used in industries includes indoor&outdoor coatings, interior and exterior latex paints, industrial coatings, powder coatings, road sign paint, anti-corrosive paint, antifouling paint, marine paint. The products can also be used in plastics (PVC, PE, polystyrene and polyurethane etc.), masterbatch, rubber, printing ink, leather, paper making, decoration paper and etc..

    2. Comparation of chlorination process VS. Sulfuric acid process rutile titanium dioxide produced by Liangjiang:

    Sulfuric acid process rutile titanium dioxide

    Advantage: take low-cost titanium ore ( or titanium slag ) and sulfuric acid as materials, long-standing technology, ripe technique, lower producing cost.

    Disadvantage: more process, longer technological process, seriously environmental pollution, normal quality stability, lower quality.

    Chlorination process rutile titanium dioxide

    Advantage: take high-purity artificial rutile (TiO2≥90%) as material, shorter technological process, easily to expand producing capacity, higher quality, can be used as substitute of imported chlorination titanium dioxide.

    Disadvantage: Currently, chlorination process titanium dioxide is monaplized by oversea companies, difficulty to import oversea equipments and technology. Higher cost caused by taking high-purity titanium ore as material. More difficulty technology.

    Due to the different raw materials and production process, the product performance is different and has different requirements to the weather resistance, hiding power, aesthetics and dispersion titanium dioxide. So the clients should choose titanium dioxide of different quality based on their needs.

    3. Titanium dioxide compared with other kinds of white pigment :

    Pigment name Relative density Reflactive index tinting reducing power Hiding power
    Reynolds number Relative value
    Chlorination rutile TiO2 4.0 2.85 1800 105 105
    Sulfuric acid process TiO2 4.2 2.76 1650 100 100
    Anatase TiO2 3.91 2.55 1270 77 78
    Barium sulfate 4.5 1.64
    Zinc oxide 5.6 2.02 200 12 14
    Lithopone 4.2 1.84 260 16
    Basic lead carbonate 6.1 2 150 9 12
    Zinc sulfate 4 2.37 660 40 39

    5. Titanium dioxide anatase, titanium dioxide antase coated, titanium dioxide rutile sulfuric process, titanium dioxide rutile chlorination process:

      Anatase TiO2 Coated Anatase Tio2 Sulfuric acid process rutile Tio2 Chloride process rutile TiO2
    powder Indoor powder Indoor powder Indoor/outdoor powder Indoor/outdoor powder
    Usage amount large little large less
    Dispersibility bad good good good
    Covering power bad bad good better
    Surface properties bad good good Good
    liquidity bad good good good
    Yellowing resistance bad bad good better
    Color stability bad normal good better



    1. Characteristic requirements for titanium dioxide in coatings and paints

    Item Building Coat
    Normal temperature drying enamel paint (Little porcelain paint type) emulsion coatings
    Outdoor weather resistance, Hiding power, aesthetic property weather resistance, Hiding power, aesthetic property( Little outdoor)
    Indoor Hiding power, aesthetic property Hiding power, aesthetic property
    item Industrial Coat
    automobile home electrical appliances
    Finish coat weather resistance, Hiding power, aesthetic property , dispersibility Hiding power, aesthetic property
    floating coat weather resistance, Hiding power, dispersibility
    primer coat dispersibility

    Coatings industry consumes most qty of titanium dioxide, especially the rutile type. The global coating industries occupy 58% - 60%, mainly because the aspects of the performance is much better than the other white pigments. So the coating using by titanium dioxide is much higher than ordinary filler, because titanium dioxide is an integral part of in the coating, covering and adornment, its role is not only more important is to improve the physical and chemical properties of paint, bust also to improve the mechanical strength of the coating, adhesion, anticorrosive, light and weather resistance.So during of the production of coatings, It’s reasonable for us to choose the suitable type and specs!

    2. Titanium dioxide quality requirements for plastic, PVC and masterbatch

    Item Performance
    Hiding power Lighter and thinner plastic products can be produced using tio2 of good hidinding power

    Decide the appearance of the white or light color palstic products

    light color or white color

    Dispersibility Affect the production cost of plastic products as bad dispersibility affects the smoothness and brightness
    Weather resistance The outdoors plastic products and plastic doors and windows require the weather resistance of tio2
    Machinability Titanium dioxide machinability is the vital key to the production efficiency and cost in the production of white masterbatch (especially the concentration variety)
    Performace impact Titanium dioxide volume of addition can affects the quality of the plastic products, especially in the condition of larger addition

    Plastic is the second largest parts for titanium dioxide, occupying about 20% of the total world titanium dioxide demands, There are more than 50 brands belongs to plastic specials in the world 500 barands. Requirements for plastic, fine particle, good dispersion performance;Good heat resistance and light resistance,During the heat and the plastic forming process , the finished product does not change color in sunlight exposure and use process. Most of the particle size in plastic is fine. In the plastics, to join titanium dioxide

    can improve the heat resistance of plastic products, light fastness, weather resistance, make the plastic products to improve the physical and chemical performance.The strong mechanical strength can extend their life!

    The effect of titanium pigment in the plastics industry mainly has two aspects, one is used as the basic white pigment, provide cover (white color); the second is to block uv light, used as uv screen disadvantages agent, used for outdoor plastic products to provide a good weatherability. For the Common plastic,it does not require the weatherability, focuses More on the paint performance requirements.

    Due to the characteristics of palstic products, When choosing different, should be taken into account in accordance with the technical requirements of plastic products, mainly to choose anatase or rutile, not same as the coatings, inks, paints.


    3. Titanium dioxide quality requirements for paper production:

    classification Tio2 classification remark
    Rutile Anatase
    decorative paper   Higher Anti-aging requirement
    High ash paper   Better Hiding power
    Low ash paper   Better opacity
    coinage paper   Better opacity

    Paper is the third largest parts for titanium dioxide, As the paper filter, mainly use in high grade paper and thin paper. To join titanium dioxide in the paper can make the paper good whiteness, good gloss, high strength, thin and smooth, not penetrate when printing, light quality.Titanium dioxide for Paper generally use the titanium dioxide without the surface treatment, can have the effect of fluorescent whitening agent, increase the whiteness of paper, but laminated paper use requires the surface treatment of rutile titanium, to meet the requirements of light resistance and heat resistance.

    Different paper use, different type titanium dioxide, titanium dioxide rutile, good oxidation resistance good weather resistance, mainly used for decorative paper and high ash paper of weather resistance; While titanium dioxide anatase used for the low transparency and low ash paper,not high rquirement for weather resistance.Although chlorination process and sulfuric acid process can produce rutile type, but the chlorination process titanium pigment , whiteness, the red crystal type of content, especially the stability of the finished product is better than that of the sulfuric acid method, suitable for use in the decorative paper and high ash;And coinage in the paper and the low ash must be used titanium dioxide by sulfuric acid, in order to meet the requirements of opacity for two kinds of paper.

    4. Titanium dioxide quality requirements for ink and rubber :

    (1) Ink

    Titanium dioxide is an indispensable white pigment in the senior ink, ink containing titanium dioxide color fast, good surface moisture resistant, easy to disperse, rutile type titanium pigment,both used in the printing ink industry .
    Practice proved rutile type titanium pigment has ideal application performance, can be widely used in various types of ink preparation, crystal shape, refractive index and tinting strength, the index of fluorescence, type is better than the sharp titanium rutile type titanium pigment, therefore, rutile type titanium pigment is widely used in printing ink.

    (2) rubber

    Titanium pigment mainly used as colorants in rubber industry, but also has a reinforcing, prevent aging, filling effect. Add titanium pigment into white and color rubber products, under the sunlight, resistant to sunlight, no crack, no color, stretching rate and resistance to acid and alkali. With titanium dioxide, rubber is mainly used for automobile tires and rubber shoes, rubber floor, gloves, sports equipment, etc., generally,anatase type. But used in automobile tyres production, add a certain amount of rutile type products, to enhance the ozone resistance and ultraviolet resistance.
