Home ProductsAnatase Titanium Dioxide

economical Tio2 pigment Anatase Titanium Dioxide for Masterbatch CAS 13463 67 7

economical Tio2 pigment Anatase Titanium Dioxide for Masterbatch CAS 13463 67 7

  • economical Tio2 pigment Anatase Titanium Dioxide for Masterbatch CAS 13463 67 7
  • economical Tio2 pigment Anatase Titanium Dioxide for Masterbatch CAS 13463 67 7
  • economical Tio2 pigment Anatase Titanium Dioxide for Masterbatch CAS 13463 67 7
  • economical Tio2 pigment Anatase Titanium Dioxide for Masterbatch CAS 13463 67 7
economical Tio2 pigment Anatase Titanium Dioxide for Masterbatch CAS 13463 67 7
Product Details:
Place of Origin: China
Brand Name: LiangJiang
Certification: ISO/REACH/SGS/ROSH
Model Number: B101-C ( Special for masterbatch)
Payment & Shipping Terms:
Minimum Order Quantity: 1Ton/Tons
Price: negotiation
Packaging Details: Plastic and paper compound valve bag, net weight of each bag: 25kgs;1 Pallet can be packed 40 bags by PE film/ 1 ton/ 40bags;1x20' FCL can be loaded 20 Pallet/ 20 ton/800bags. 1x20' FCL can be loaded 22 ton/ 880bags without pallet.;If you have special req
Delivery Time: 10 working days after received your payment
Payment Terms: 30% T/T in advance, the balance against the copy of B/L;Irrevocable Sight L/C;western Union、D/A、D/P
Supply Ability: 3000Ton/Tons per Month
Contact Now
Detailed Product Description
Classification: Titanium Dioxide CAS No.: 13463-67-7
HS: 3206111000 ElNECS No.: 236-675-5
Model Name: Anatase Titanium Dioxide B101-C ( Special For Masterbatch) Production Process: Sulphuric Acid Process
MF: Tio2 Grade Standard: Industrial Grade
Appearance: White Powder Application: Suitable For Masterbatch, Plastic Industry.
Main Features: Good Compatibility And Dispersion, The Appearance Of White Powder, Non-toxic, Stable Chemical Properties , Small Oil Absorption, High Tinting Strength, Good Whiteness And So On.
High Light:

anatase grade titanium dioxide

,

anatase tio2

economical Tio2 pigment Anatase Titanium Dioxide for Masterbatch CAS. 13463-67-7



1. Specifications:



titanium dixoide anatase , mainly has the following several aspects: Using in paper , generally without the surface treatment, the effect of fluorescence, whitening, increase the whiteness of the paper. Usig in ink, Both type,anatase and rutile, is the indispensable white pigment. Using inTextile and chemical fiber industry , manily as matting agent, due to the softness of anatase than the rutile type, generally use anatase. Using in rubber, as colouring agent,reinforcing, prevent aging, filling effect, general use anatase type.



Titanium dioxide, stable chemical properties. It is a kind of partial acid amphoteric oxide,does not react with other elements and compounds at normaltemperature, doesn't work for oxygen, ammonia, nitrogen, hydrogen sulfide, carbon dioxide, sulphur dioxide, insoluble in water, fat, also in dilute acid and inorganic acid, alkali, only soluble in hydrofluoric acid.But under the effect of light, titanium pigment, can occur continuous REDOX reaction and has the photochemical activity.This kind of photochemical activity, particularly under ultraviolet light sharp, this nature make titanium dioxide even some inorganic compounds photosensitized oxidation catalysts, and some organic compounds photosensitive reduction catalyst.



2. Basic data

Chemical Name

Titanium dioxide (TiO2)

CAS NO.

13463-67-7

EINECS NO.

236-675-5

COLOR

77891, white pigment

ISO591-1:2000

A1

ASTM D476-84

III, IV

Appearance

white powder

True Density

3.9 g/cm3

Apparent density

0.6~0.9 g/cm3

Surface treatment

Silicon, aluminum, calcium and magnesium+inorganic coated

Typical technical index( Standard:Q/VAIP1-2010)

 No.

 Item

 Unit



1

Active TiO2 content

%

≥98

2

 Color (standard sample as the first grade)

%

Approximate

3

 Tint reducing (Reynolds number)

%

≥100

4

Oil absorption

g/100g

≤ 22

5

Ph value of aqueou suspension



6.5-8.0

6

 Residue on sieve 45(μm)

%

≤ 0.05

7

 volatile 105 ℃

%

≤ 0.5

8

 water soluble matter

%

≤ 0.4

9

  Water extract resistivity

Ωm

≥30

10

water dispersibility



≥65

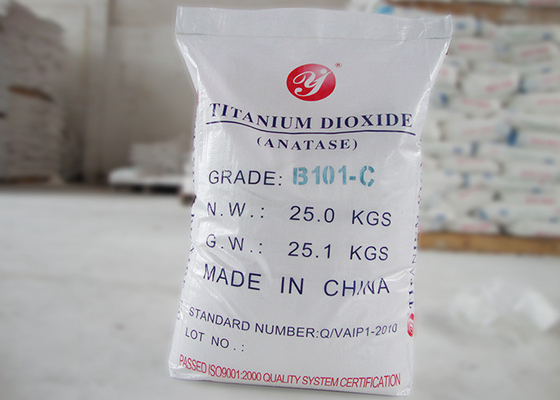

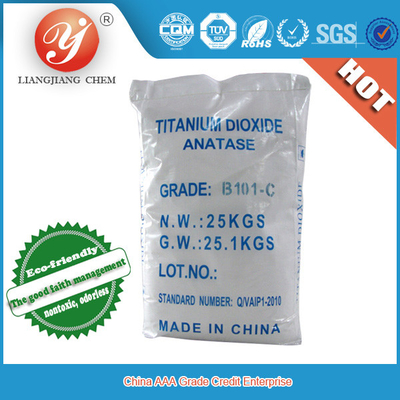

Package: plastic woven bag inner plastic bag with net weight 25KG.500kg or 1000kg plastic  bag or as customer’s request.

Storing and transporting security:

This product, non-toxic harmless, white powder, prevent moisture in the process of transportation, storage should be placed in a cool, ventilated, dry place.
Avoid breathing dust when processing, if contamination, can be cleaned with soap and water , concrete technology may refer to the corresponding material safety data.





3. Description:

1, Liangjiang brand- Active pigment Titanium dixoide anatase B101-C ( Special for masterbatch), adopting the surface treatment technology, good compatibility and dispersion, the appearance of white powder, non-toxic, stable chemical properties , small oil absorption, high tinting strength, good whiteness, one of the characteristic products in our company.



Main features: Good compatibility and dispersion, the appearance of white powder, non-toxic, stable chemical properties , small oil absorption, high tinting strength, good whiteness and so on.



Applications: Liangjiang brand- Titanium dixoide anatase activation B101-C ( Special for masterbatch), Suitable for masterbatch, plastic industry.



4. Titanium dioxide compared with other kinds of white pigment:



Name

Relative Density

Refractive index

Tint reducing

hiding power

Reynolds number

relative value

Tiatnium dioxide rutile Chlorination process

4.0

2.85

1800

105

105

Tiatnium dioxide rutile sulfuric process

4.2

2.76

1650

100

100

Titanium dioxide anatase

3.91

2.55

1270

77

78

Barium sulfate

4.5

1.64







zinc oxide

5.6

2.02

200

12

14

lithopone

4.2

1.84

260

16



BasicLeadCarbonate

6.1

2

150

9

12

zinc sulfide

4

2.37

660

40

39

From this table, titanium dioxide rutile compared with titanium dioxide anatase,
relatively lack of surface treatment technology. To the high weatherability products,
can only use the rutile type; To the lower weatherablility, higher whiteness,
titanium dioxide anatase is the best choice.

3. Titanium dioxide anatase, titanium dioxide antase coated, titanium dioxide rutile sulfuric process, titanium dioxide rutile chlorination process:





Titanium dioxide anatase

titanium dioxide antase coated

titanium dioxide rutile sulfuric process

titanium dioxide rutile chlorination process

Powder type

Indoor powder

Indoor powder

Indoor /outdoor powder

Indoor /outdoor powder

Using quantity

More

seldom

More

Less

Dispersibility

bad

good

 good

 good

Hiding power

bad

bad

good

 excellent

Surface properties

 bad

 good

 good

good

Fluidity

 bad

good

good

 good

anti yellowing

 bad

 bad

 good

 excellent

Color stability

 bad

 Medium

better

excellent



According to the requirements of the coating properties, to choice the satisfied for the coatings and

coating properties is very important. From the table, with the chlorination process rutile type titanium

pigment production product is the best, currently we could see rutile chlorination is the best white

pigement on the market . The comprehensive performance is excellent, the first choice in the white

pigments, also the necessary pigment in light color.Because of the different surface treatment

technology, titanium dioxide has different models. According to the characteristics of the mixture of

coating, such as the high gloss, high covering power, or high pulverization, to choice the relevant type.

Rutile sulfuric acid process, due to the conversion rate of anatase to rutile is lower than chlorination

process, so the whiteness of the product and the stability of the light from chlorination process is a

bit difference, but the price is lower.

Because the difference both crystal category, usage and dosage also have different

distinction, in commonly used white pigments, anatase ,the minimum relative density,

chemical properties is very stable, and lower price than titanium rutile , so there is the

certain markets in many fields of industry like the cosmetics, paints, papers and others.



Applications:



1. titanium dioxide quality requirements: Plastic, PVC, masterbatch



requirements

effects

Hiding power

Good covering power, Lighter and Thinner to produce plastic products

Whiteness

Decide the appearance of the palstic products:light color or white color

dispersibility

Affect the cost of plastic products production, bad dispersibility affects the  smoothness and brightness



weather resistance

The plastic products outdoors and plastic doors and Windows must ensure the weather resistance

machinability

In the production of white masterbatch (especially concentration variety), titanium dioxide machinability is the key to the production efficiency and cost.

performace impact

Titanium dioxide volume of addition affects the quality of the plastic products, Especially when larger addition.

Plastic is the second largest parts for titanium dioxide, occupying about 20% of the total world titanium dioxide demands, There are more than 50 brands belongs to plastic specials in the world 500 barands. Requirements for plastic, fine particle, good dispersion performance;Good heat resistance and light resistance,During the heat and the plastic forming process , the finished product does not change color in sunlight exposure and use process. Most of the particle size in plastic is fine. In the plastics, to join titanium dioxide

can improve the heat resistance of plastic products, light fastness, weather resistance, make the plastic products to improve the physical and chemical performance.The strong mechanical strength can extend their life!

The effect of titanium pigment in the plastics industry mainly has two aspects, one is used as the basic white pigment, provide cover (white color); the second is to block uv light, used as uv screen disadvantages agent, used for outdoor plastic products to provide a good weatherability. For the Common plastic,it does not require the weatherability, focuses

More on the paint performance requirements.

Due to the characteristics of palstic products, When choosing different, should be taken into account in accordance with the technical requirements of plastic products, mainly to choose anatase or rutile, not same as the coatings, inks, paints.

economical Tio2 pigment Anatase Titanium Dioxide for Masterbatch CAS 13463 67 7 0



 we aspires to be the supplier of  the world's leading chemical raw materials, show our value of the products made in China!
