Color Masterbatch Grade Chloride Process Titanium Dioxide Tio2 Cas No.13463-67-7

Color Masterbatch Grade Chloride Process Titanium Dioxide Tio2 Cas No.13463-67-7

  • Color Masterbatch Grade Chloride Process Titanium Dioxide Tio2 Cas No.13463-67-7
  • Color Masterbatch Grade Chloride Process Titanium Dioxide Tio2 Cas No.13463-67-7
  • Color Masterbatch Grade Chloride Process Titanium Dioxide Tio2 Cas No.13463-67-7
Color Masterbatch Grade Chloride Process Titanium Dioxide Tio2 Cas No.13463-67-7
Product Details:
Place of Origin: China
Brand Name: Liangjiang
Certification: ISO/REACH/SGS/ROSH
Model Number: R920
Payment & Shipping Terms:
Minimum Order Quantity: 1MT
Price: negotiation
Packaging Details: Bag:25kg per plastic & paper compound bag;Pallet:40 bags per pallet (PE filmed);1x20' FCL:20 mt with pallets; 22 mt without pallets Marks:Customization available
Delivery Time: Within 10 workdays after payment
Payment Terms: 30% TT prepayment, 70% against the copy of BL,Irrevocable sight LC,West Union, D/A, D/P
Contact Now
Detailed Product Description
Model Name: Rutile Titanium Dioxide R920 Grade Standard: Color Masterbatch Grade
Supply Ability: 4,500 MT Per Month Appearance: White Powder
Application: High-gloss Paint, Decorative Coatings, Coil Coatings, Water-based Paint, Oil-based Paint, Plastics (PVC, PE, Polystyrene And Polyurethane), Masterbatch, Rubber, High-grade Printing Ink And Paper HS: 3206111000
CAS No.: 13463-67-7 ElNECS No.: 236-675-5
Classification: Rutile Titanium Dioxide Production Process: Chloride Process
MF: Tio2
High Light:

chloride process tio2

,

titanium dioxide chloride process

Tio2 Cas No.13463-67-7 Color Masterbatch grade Chloride Process Titanium Dioxide





Titanium dioxide quality requirements for plastic, PVC and masterbatch



Items

Performance

Hiding power

Lighter and thinner plastic products can be produced using tio2 of good hidinding power

Whiteness

Decide the appearance of the white or light color palstic products

light color or white color

Dispersibility

Affect the production cost of plastic products as bad dispersibility affects the  smoothness and brightness

Weather resistance

The outdoors plastic products and plastic doors and windows require the weather resistance of tio2

Machinability

Titanium dioxide machinability is the vital key to the production efficiency and cost in the production of white masterbatch (especially the concentration variety)

Performace impact

Titanium dioxide volume of addition can affects the quality of the plastic products, especially in the condition of larger addition



Plastic is the second largest parts for titanium dioxide, occupying about 20% of the total world titanium dioxide demands, There are more than 50 brands belongs to plastic specials in the world 500 barands. Requirements for plastic, fine particle, good dispersion performance;Good heat resistance and light resistance,During the heat and the plastic forming process , the finished product does not change color in sunlight exposure and use process. Most of the particle size in plastic is fine. In the plastics, to join titanium dioxide can improve the heat resistance of plastic products, light fastness, weather resistance, make the plastic products to improve the physical and chemical performance.The strong mechanical strength can extend their life!



The effect of titanium pigment in the plastics industry mainly has two aspects, one is used as the basic white pigment, provide cover (white color); the second is to block uv light, used as uv screen disadvantages agent, used for outdoor plastic products to provide a good weatherability. For the Common plastic,it does not require the weatherability, focuses

More on the paint performance requirements.



Due to the characteristics of palstic products, When choosing different, should be taken into account in accordance with the technical requirements of plastic products, mainly to choose anatase or rutile, not same as the coatings, inks, paints.



Specifications:



Basic data

Chemical Name

Titanium dioxide(TiO2)

CAS No.

13463-67-7

EINECS No.

236-675-5

ISO591-1:2000

R2

ASTM D476-84

III, IV

Appearance

White powder

BET

4.1 g/cm3

Density

0.7~1.0 g/cm3

Surface treatment

Zirconium, Aluminum coats and special organic treatment

Factory

Shanghai liangjiang titanium white products co.,ltd



Typical technical index( Standard:Q/VAIP1-2010)

Index

R 920

TiO2 %

≥92

Rutile %

≥99.0

Whiteness (compared to sample)
∆L*( samples- standard samples)
∆s=(∆a2+∆b2)0.5

Unlower
≥-0.3
≤0.5

105℃ volatile %

≤0.5

Water solubles %

≤0.5

Redidue (45µm sieve) %

≤0.01

Aqueous suspension PH

6.5-8.0

Lightness %

≥98

Oil absorption g/100g

≤21

Color reducing (Reynolds)

≥1900

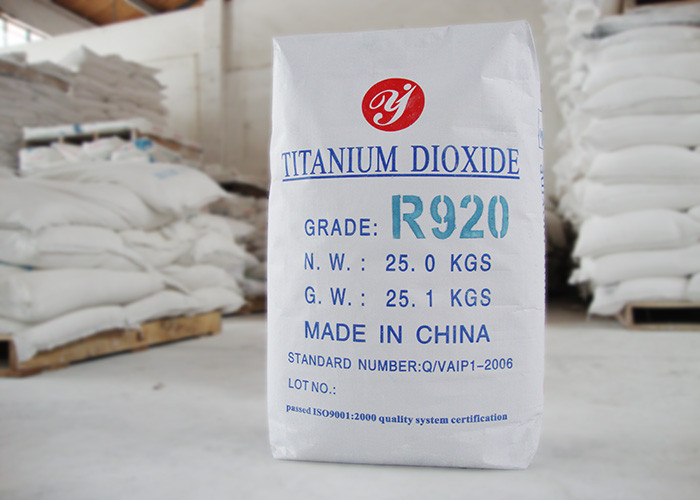

packing specification:



Adopted plastic woven bags or paper and plastic compound bags, net weight is 25%, or packaged as customer’s request in 500kgs or 1000kgs bags.





Storage and transportation safety:



Store in a cool, dry, well-ventilated area away from incompatible substancesWash thoroughly after handling. Remove contaminated clothing and wash before reuse. Use with adequate ventilation. Minimize dust generation and accumulation. Avoid contact with eyes, skin, and clothing. Avoid breathing dust.





Description:



1, Liangjiang Brand rutile titanium dioxide R920 is manufactured through chlorination process, using high-quality titanium ore as the main raw material, after chlorination, refining, oxidation and surface treatment.



2, Liangjiang Brand rutile titanium dioxide R920 is coated with ZrO2, Al2O3 and special organic treatment. The features are of neutral hue, high gloss, high weatherability, high covering power, excellent dispersion, etc. With excellent resistance to pulverization, our R920 can substitute other high-grade titanium dioxide products like Dupont R902.



3, Comparation of chlorination process VS. Sulfuric acid process rutile titanium dioxide produced by Liangjiang:





Color Masterbatch Grade Chloride Process Titanium Dioxide Tio2 Cas No.13463-67-7 0



Sulfuric acid process titanium dioxide

Advantages: use cheap titanium ore (or titanium slag) and sulfuric acid as the main raw materials, of long-history technology, proven technique and low production cost.

Disadvantages: process, long process, serious pollution to the environment, low product quality stability

Chlorination process

Advantages: using the less impurities artificial rutile of 90% tio2 purity as the raw material, short process flow, production capacity easy to expand and continue, high quality.

Disadvantages: because of the monopoly of the foreign companies, it’s hard to bring in the foreign technology and equipment in China. Besides, due to the raw material of high content titanium dioxide ore, the production cost is relatively high and the process is hard.

Due to the different raw materials and production process, the product performance is different and has different requirements to the weather resistance, hiding power, aesthetics and dispersion titanium dioxide. So the clients should choose titanium dioxide of different quality based on their needs.



4, Titanium dioxide compared with other kinds of white pigment :



Name

Relative Density

Refractive index

Tint reducing

hiding power

Reynolds number

relative value

Tiatnium dioxide rutile Chlorination process

4.0

2.85

1800

105

105

Tiatnium dioxide rutile sulfuric process

4.2

2.76

1650

100

100

Titanium dioxide anatase

3.91

2.55

1270

77

78

Barium sulfate

4.5

1.64







zinc oxide

5.6

2.02

200

12

14

lithopone

4.2

1.84

260

16



BasicLeadCarbonate

6.1

2

150

9

12

zinc sulfide

4

2.37

660

40

39
