HS 28332700 Barium Sulfate Paint For Automobile Paint / Powder Coating

HS 28332700 Barium Sulfate Paint For Automobile Paint / Powder Coating

  • HS 28332700 Barium Sulfate Paint For Automobile Paint / Powder Coating
HS 28332700 Barium Sulfate Paint For Automobile Paint / Powder Coating
Product Details:
Place of Origin: China
Brand Name: LiangJiang
Certification: ISO/REACH/SGS/ROSH
Model Number: High light barium sulfate
Payment & Shipping Terms:
Minimum Order Quantity: 1Ton/Tons
Price: negotiation

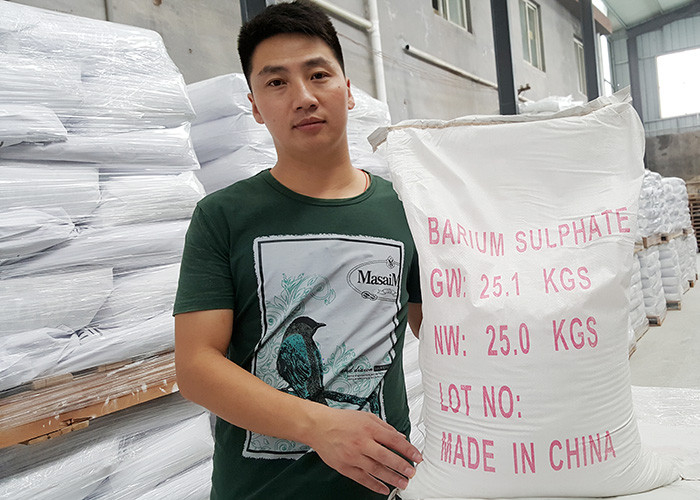

Packaging Details: Plastic and paper compound valve bag, net weight of each bag: 25kgs;1 Pallet can be packed 40 bags by PE film/ 1 ton/ 40bags;1x20' FCL can be loaded 20 Pallet/ 20 ton/800bags. 1x20' FCL can be loaded 22 ton/ 880bags without pallet.;If you have special req
Delivery Time: 10 working days after received your payment
Payment Terms: 30% T/T in advance, the balance against the copy of B/L;Irrevocable Sight L/C;western Union、D/A、D/P
Supply Ability: 5000Ton/Tons per Month
Contact Now
Detailed Product Description
Classification: Barium Sulfate CAS No.: 7727-43-7
HS: 28332700 ElNECS No.: 231-784-4
Model Name: High Light Barium Sulfate Appearance: White Powder
Application: Powder Coating, Paint, Coatings, Primer, Decorative Coatings, Coil Coatings, General Industrial Coatings, Plastic, Rubber, Chips, Friction Plate, Ceramic, Glass, Electronics, Cosmetics, X-ray, Gamma Rays, And Other Fields. Grade Standard: Industrial Grade
High Light:

barium sulphate paint


paint barium sulfate

HS 28332700 Natura barium sulfate Paint used in automobile paint and Powder coating




Shanghai liang jiang titanium dioxide chemical products co., LTD. Production of effective control of the highlights in the production of barium sulfate crystal shape and particle size, has the high pure degree, excellent dispersion and not easy to precipitate is can't be matched by other conventional packing.In addition, the "bright jiang card" highlights barium sulfate has very low oil absorption, can improve the critical pigment volume concentration of coating, reduce the dosage of resin binders accordingly."Bright jiang" brand high relatively cheap barium sulfate can replace some expensive titanium pigment, coating product cost can be decreased efficiently.Therefore, choose to use "bright jiang card" highlights barium sulfate, can not only improve the quality of products, also can reduce the cost of production.'


Basic Data:

Chemical Name:

high light barium sulfate

CAS #:




HS #:



White Powder



Surface treatment



Shanghai liangjiang titanium white products co.,ltd


Typical technical indicators:




BaSO4 %≥



105°C valatiles %



Water solubles %



Fe %≤



Whiteness ≥



  Oil absorption(g/100g)



PH (100g/L)



Residue (45μm sieve) %



Particle sizes(um)

d50 2.5±0.2

        d50 3.8±0.5

d97 6.8±0.6

d97 12±2.0

Mesh: 1250,2000,3000,6000





1. Liangjiang Brand - high light barium sulfate is a special chemical synthesis process, the use of special filtering technology and special surface treatment technology of production, high whiteness, no black particle, good dispersion, etc.This product is white powder material, non-toxic, odorless, insoluble in water, acid, alkali and organic solvents, soluble in hot concentrated sulfuric acid, only not to any gas reaction.So is excellent weather resistance, corrosion product.Product 1250 mesh, 3000 mesh, 5000 mesh, 5000 mesh, 12500 mesh, 15000 mesh six kinds of specifications.


Main features:

White degree is high, use with titanium dioxide has a coordinating role.

Cardiac uniform particles small, narrow particle size distribution, close to import titanium dioxide.

Filled with special surface treatment, good dispersibility, high affinity with the resin.

Cardiac function isolation between titanium dioxide particles, titanium dioxide particles from distance to each other, give full play to the performance of the titanium dioxide, improve the efficiency of cover.

Derive product purity, excluding black particles, to ensure product purity.


Scope of application:


1, plastic, with good dispersion, reinforced plastic hardness and rigidity, keep the plastic surface gloss and brightness, is especially suitable for manufacturing home appliance shell highlights of PP and nylon parts.

2, powder coating, powder coating can be enhanced by sex and light flowing property, and with all the pigment has good compatibility, can improve powder coating in spraying process to achieve the ideal coating thickness, improve on powder rate, reduce the dosage of powder coatings, powder coatings is will choose products.

3, in terms of coating, the product used in conjunction with titanium dioxide by certain proportion, can make the chain more effectively play its cover performance, reduce the dosage of titanium pigment, especially suitable for automotive paint, high-grade exterior wall coating is used.At the same time on the resistance to pulverization performance has improved significantly.


3, Liangjiang brand ultrafine barium sulfate production process:



HS 28332700 Barium Sulfate Paint For Automobile Paint / Powder Coating 0



  1. paint, paint production of barium sulfate characteristics requirements.



Powder Coatings

High whiteness, easy dispersion, black spots, and resin have good affinity, improve the powder rate, can significantly improve the surface gloss, leveling, hardness, impact resistance, adhesion.

Emulsion Coatings

Good particle size distribution, good dispersion and anti sink, adding high gloss latex paint does not affect the gloss, color concentration, bright degree.

anticorrosive paint


Stable chemical stability, good dispersion, oil absorption, with the space effect, reduce the amount of pigment.

Plastics paints

Super fine grain size and grain size distribution, good dispersion and anti sink, add a small amount of plastic paint, increase the film hardness, add paint does not affect the gloss, color density, brightness, effectively reducing the use of resin and pigment, unable to add traditional packing of high-grade paint add add the product has excellent effect

Paper paints

Introduced in can increase the gloss, liquidity, such as art paper in white and transparent colored paper. Part of titanium dioxide available double barium sulfate instead of without losing its luster.


1.1 comparison of film whiteness and hiding power

The production formula (with superfine barium sulfate instead of 15% titanium dioxide) and the original production formula under the same conditions of the plate test data as shown in Table 1


Effect of barium sulfate on the whiteness of coatings


 Covering power g/㎡


Whiteness index










From the table 1, we can see that the addition of ultra-fine barium sulfate coating, the hiding power but increased, the basic unchanged whiteness.

1.2 film artificial aging test

Put the different formulations of spray paint brush on the cement board, in the sunlight aging machine for artificial aging test. As a result, original production formula discoloration time for 580 hours, existing production formula discoloration time is 12 hours, after adding superfine barium sulfate the weather resistance of paint film can be significantly improved.

1.3 coating at room temperature results

Due to the small particle size of ultrafine barium sulfate, the agglomerated morphology also determines the density of not less than the general barium sulfate, so it overcomes the ordinary barium sulfate precipitation, easy lamination defects. The latex paint test samples placed a year without obvious stratification, settlement and the stability is good.

In addition, the film in the film in the water resistance, wet scrub, anti pollution, etc..

1.4 to 1 ~ 8 Lm barium sulfate shattering particle size, can replace part of titanium dioxide when applied in latex paint, whiteness And hiding power did not decline, although after smashing the barium sulfate is fine, but it is still on the agglomeration of the agglomeration of medium sized particles. Because of precipitated barium sulfate in formation, the crystal size is between 0.2 ~ 0.8 Lm, the agglomeration of particles clearance is too small, so that scattered resin could not enter into the agglomeration in the body, the results when the paint film after drying, these small air gap being preserved, in the form of air, thus improve the refraction between the various components. In this film, the material's refractive index is as follows: 2.76, titanium white polymer is 1.55, the water is 1.33, 1.0 air in the wet film And dry film, mainly from the following several refractive index difference determines the size of the covering power: titanium white - polymer = 2.76-1.55 = 1.55, titanium white - water = 2.76-1.33 = 1.33, titanium white - packing = 1.11, titanium white - air = 1.76. Thus it can be seen that as a result of the existence of ultrafine barium sulfate powder, after the coating film, in addition to other refractive index difference, And the difference of the titanium white And the water's refractive index. After film into a dry film, due to the evaporation, the micro air bubble in the paint film, And produced between titanium dioxide and air refractive index difference, objectively increased the scattering ability of titanium dioxide, thereby increasing the hiding power, so superfine barium sulfate can replace part of titanium dioxide, and hiding power is not decreased.


2. The drilling mud weighting agent to the requirement of barium sulfateIn some oil and gas well drilling, the general use of drilling mud, clay proportion of 2.5 or so, the proportion of water is 1, so the mud weight is low, sometimes the mud weight can't with underground oil and gas pressure balance, has caused the blowout accident.Under the condition of the underground pressure is higher, you need to increase the mud weight, supplying the mud with barium sulfate is an effective measure to increase the mud weight.Do drilling mud with barium sulfate general fineness to achieve more than 325 mesh, such as barium sulfate fineness is not prone to precipitation.Drilling mud with barite for weighting is greater than 4.2, BaSO4 content not less than 95%, less than 1% soluble salts.


3. Liangjiang Brand ultrafine barium sulfate in other areas of application:

  Adhesive: good rheological property, high filling and chemical resistance, make barium sulfate is suitable for adhesive, unsaturated polyester and polyurethane system, etc.

  Printing ink: low wear resistance, high gloss and color stability, low coherence, and combined with its easy liquidity makes barite powder is suitable for the high quality of printing inks, barium sulfate recommended for people with high optical activity of ink.Wood and paint: ultrafine barium sulfate with low coherence, optical characteristics of low dispersion and fine particles, especially suitable for paint paint, varnish, paint, etc. According to the barium sulfate has the chemical resistance and weatherability.

  High fill paint and thick slurry coating: coating series can be applied to all, for example, primer, high build coating all types, such as its low specific surface area and particle size of division and easy mobility, make ultra-fine barium sulfate in the machining process has low wear resistance, ultra-fine barium sulfate recommended for primer surface automatically, even when the high fill also keep a good uniformity and smoothness.

  Paint: high light barium sulfate is better than that of most other filling agent, especially in chemical resistance coating. Its inertia, insoluble in water, acid, alkali and organic agents. Excellent gloss and granular precision makes the paint in long-term exposure can be protected. Ultrafine barium sulfate recommended for paint, it can increase the surface hardness, color stability.

  Road construction: rubber and asphalt mixture containing about 10% ultrafine barium sulfate has been successfully used in the parking lot, is a kind of durable paving material.At present, the heavy road construction equipment tires have been partially filled with ultra-fine barium sulfate, to increase the weight, to consolidate fill region.Prevent ray: cement, mortar and concrete with X-ray absorption performance, made with ultrafine barium sulfate barium cement, mortar and concrete, to replace the metal lead plate shielding nuclear reactors and prevent X ray to build the scientific research, hospital buildings.

  Glass: deoxidation agent, clarifying agent, flux, increase the stability of optical glass, gloss, and strength.
