Shanghai Liangjiang Titanium White Product Co., Ltd.
We aspire to be the world's leading manufacturer, supplier of raw chemical materials, to create the value of China manufacturing!
Place of Origin: | China |
Brand Name: | LiangJiang |
Certification: | ISO/REACH/SGS/ROSH |
Model Number: | 99% |
Minimum Order Quantity: | 1Ton/Tons |
---|---|
Price: | negotiation |
Packaging Details: | Plastic and paper compound valve bag, net weight of each bag: 25kgs;1 Pallet can be packed 40 bags by PE film/ 1 ton/ 40bags;1x20' FCL can be loaded 20 Pallet/ 20 ton/800bags. 1x20' FCL can be loaded 22 ton/ 880bags without pallet.;If you have special req |
Delivery Time: | 10 working days after received your payment |
Payment Terms: | 30% T/T in advance, the balance against the copy of B/L;Irrevocable Sight L/C;western Union、D/A、D/P |
Supply Ability: | 2000Ton/Tons per Month |
Model Name: | Coating Grade Indirect Method Zinc Oxide | Classification: | Zinc Oxide |
---|---|---|---|
Appearance: | White Powder | ElNECS No.: | 215-222-5 |
CAS No.: | 1314-13-2 | HS: | 28170010 |
Application: | It Can Be Used For Products Such As Top-grade Paint, Coating Material And The Coating Intermediate Etc. | Grade Standard: | Coating Grade |
MF: | Zno | Production Process: | Indirectly Process |
High Light: | zinc white powder,zincoxide powder |
Specifications:
Chemical Name |
Zinc oxide |
Other name |
Zinc White |
Formula |
Zno( notes: atomic weight Zn 65.38 plus atomic weight O 15.9994 equals 81.3794) |
CAS No. |
1314-13-2 |
EINECS NO. |
215-222-5 |
Molecular Weight |
81.37 |
Appearance |
White hexagonal crystals or powders. Tasteless, nontoxic, fine. |
Bulk density |
5.606g/cm3 |
Refraction |
2.008-2.029 |
Factory |
Shanghai liangjiang titanium white products co.,ltd |
Zinc oxide directly process, The classification, the grade and the brands No.,
ITEM |
GRADE |
BRAND NO. |
APPLICATION |
X |
First |
ZnO-X1 |
Rubbers |
Second |
ZnO-X2 |
||
T |
First |
Zn-T1 |
Coatings |
Second |
ZnO-T2 |
||
Third |
ZnO-T3 |
||
C |
First |
ZnO-C1 |
ceramics |
Second |
ZnO-C2 |
Typical technical index( Standard: GB/T3494-2012)
Item |
Unit |
Index |
||||||
ZnO-X1 |
ZnO-X2 |
ZnO-T1 |
ZnO-T2 |
ZnO-T3 |
ZnO-C1 |
ZnO-C2 |
||
Zinc oxide(calculated with dry product) |
% |
≥99.5 |
≥99 |
≥99.5 |
≥99 |
≥98 |
≥99.3 |
≥99 |
Metal(calculated with Zn) |
% |
- |
- |
- |
- |
- |
- |
- |
Lead oxide (calculated with PbO) |
% |
≤0.12 |
≤0.2 |
- |
- |
- |
- |
- |
Manganicoxide (calculated with Mn) |
% |
≤ 0.0002 |
- |
- |
- |
- |
- |
- |
Copper oxide (calculated with CuO) |
% |
≤0.006 |
- |
- |
- |
- |
- |
- |
Hydrochloric acid insoluble matter |
% |
≤ 0.03 |
≤ 0.04 |
- |
- |
- |
≤0.08 |
≤0.08 |
Burnt loss |
% |
≤ 0.4 |
≤ 0.6 |
≤ 0.4 |
≤0.6 |
- |
≤0.4 |
≤0.6 |
Screening residues(45μm ) |
% |
≤ 0.28 |
≤ 0.32 |
≤ 0.28 |
≤0.32 |
≤0.35 |
≤0.28 |
≤0.32 |
Soluble matter in water |
% |
≤0.4 |
≤0.4 |
≤0.4 |
≤0.6 |
≤0.8 |
≤0.4 |
≤0.6 |
Volatile matter at 105℃ |
% |
≤0.4 |
≤0.4 |
≤0.4 |
≤0.4 |
≤0.4 |
≤0.4 |
≤0.4 |
Oil absorption |
g/100g |
- |
- |
≤18 |
≤20 |
≤20 |
- |
- |
Tint reducing |
% |
- |
- |
≤100 |
≤95 |
≤95 |
- |
- |
Hiding power |
g/㎡ |
- |
- |
≤150 |
≤150 |
≤150 |
- |
- |
Colour (comparing with the standard sample) |
|
- |
Meet the standards |

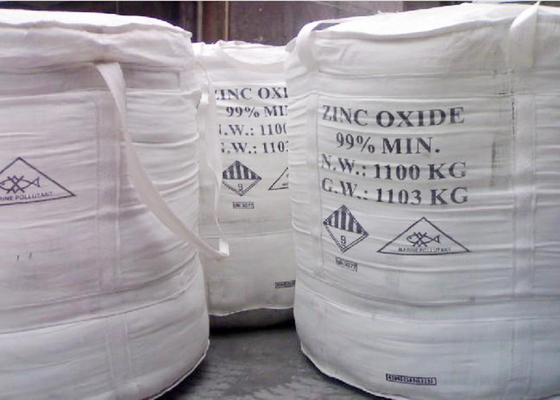

Package: plastic woven bag inner plastic bag with net weight 25KG.500kg or 1000kg plastic bag or as customer’s request.
This product, Non-toxic and harmless, white powder,need to prevent moisture in the process of transportation, storage should be placed in a cool, ventilated, dry place. Avoid breathing dust when processing, if contamination, can be cleaned with soap and water , concrete technology may refer to the corresponding material safety data.
Description:
1. Liangjiang brand- zinc oxide directly process, take Zinc concentrate, zinc ash, zinc ore as the raw materials, after heatings, the briquetting into sands, reduction, oxidation and cooling powder, baking powder, packing, etc, zinc oxide directly will be finished.The purity is 75% to 95%, a little high impurities. Shanghai liangjiang titanium white products co.,ltd, have the techinical research for many years, sloved the the removing impurities techniques for the low content zinc, breaked up the situation the others can’t produce zinc oxide 99.5% and 99.7%, the whiteness is above 80%, the impurities contents comparatively are low. So our production process is one of the leaders in this industry.
2. Liangjiang brand-zinc oxide directly process. The quality also is decided by the producing raw materials, cheaper price,mainly used in rubbers, coatings , Ceramics, cables, petroleums, chemicals, glasses, enamels, plastics, cement products, lubricating oils, ointments, adhesives, sealants, paints and othes.
3.Liangjiang brand Direct method Zinc Oxide process:
Currently, the production methods of zin oxide, two categories (pyrogenic process and wet process). pyrogenic process, incluing directly and indirectly.
Item one: indirectly process( also called French process), Based at the high purity zinc ingots, sublimation by heats, oxidation , then zinc oxide will be finished.
Item two: directly process( also called America process), take Zinc concentrate, zinc ash, zinc ore as the raw materials, after heatings, the briquetting into sands, reduction, oxidation and cooling powder, baking powder, packing, etc, zinc oxide directly will be finished.
Item three: wet process also called chemical process. mainly including acid leaching and ammonia. Acid leaching process, the materials as the coarse zinc or zinc ore, reaction with Dilute acids,by subtraction, neutralization, drying and calcining, zinc oxide finished. Ammonia process, the materials as the coarse zinc oxide or roastings used for desulphurization catalysts, zinc oxide will be finished. At present, zinc oxide indirectly process takes 70% to 80%, zinc oxide directly process takes 10% to 20%, the wet process only takes 1% to 2%.
Applications:
Liangjiang brand zinc oxide direclt process, Used in rubbers, phosphating solutions, coatings, paints, varistors, thin films, thermal conductive materials and other industries. The heavy metal contents of zinc ingot or zinc slag directly affect the heavy metal impurity content of product, the products with low heavy metals, can also be used in animals feed, medicine, health care and other industries.
Item No.1 Liangjiang brand zinc oxide, request for Phosphating solution:
The phosphating liquid production for the raw materials is very high.Obviously, more strict for zinc oxide. Reaction with Phosphoric acid and zinc oxide, if the low purity of zinc in zinc oxide or the purity of zinc oxide is not enough. Two situations as follows,
No.1 Consumes more raw materials,reaction with Phosphoric acid. It will affect the purity of the products.
No.2 The lead purity of zinc oxide, higher or lower, affects the transparency of the phosphating liquid. Because zinc metlas could be soluble in acids solvent during the heating process.Generally, use zinc oxide indirectly process. Besides, mainly supply Zinc Ions,the main components of phosphating film. zinc phosphate made by reaction with Zinc oxide and phosphoric acid, could be used in metals surface, Anticorrosive, antirust, that’s zinc phosphate coating on metal surface, as antirust pigment.
we aspires to be the supplier of the world's leading chemical raw materials, show our value of the products made in China!
Contact Person: Mr. King Wang
Tel: 86-21-52210848 / 13916566563
Fax: 86-21-52210847
