Chloride Process Titanium Dioxide Powder , Pigment Tio2 Natural Organic

natural organic Chloride process titanium dioxide pigment for Industrial Coatings



Specifications:

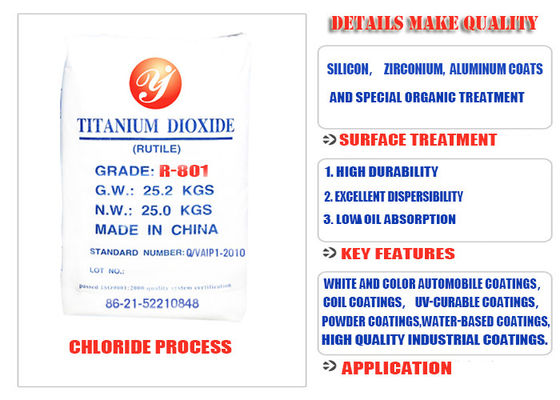

Liangjiang Brand R801 is chlorination process Rutile titanium dixoide,

which is treated by Sio2, Al2O3, ZrO2. It is designed as an universal type.



This substance is of high importance for coatings.
Based on experiments and expert knowledge, we produced rutile pigments in various grades.

Each grade leads to excellent performance properties for the type of paint or coating being manufactured like high chalk resistance with extreme durability for exterior paints and coatings,

or low abrasion and high opacity in inks.
Using these TiO2 pigments, coatings resistant against weathering. They can be applied in

external uses and have water proofing properties.
Low abrasion of this form of pigment is important in producing flexographic inks. Also,

because of resistance against weathering it increases the life of glasses and is useful

for polishing. TiO2 pigments are used in industrial and architecture coatings because

of their naturalness, whiteness and opacity.
Applications of TiO2 rutile pigments are as follows:
• Industrial Coatings
• Powder Coatings
• Silicone Coatings
• Mineral Plasters
• Can Coatings
• Decorative Coatings
• Wood Protecting
• UV Coatings
• Automobile Coatings
• Low-VOC Systems



Basic data:



Chemical Name	Titanium dioxide(TiO2)
CAS No.	13463-67-7
EINECS No.	236-675-5
ISO591-1:2000	R2
ASTM D476-84	III, IV
Appearance	White powder
BET	4.0 g/cm3
Density	0.7~1.0 g/cm3
Surface treatment	Silicon, Zirconium,  Aluminum coats and special organic treatment



Typical technical index( Standard:Q/VAIP1-2010)



Index	R 801
TiO2 %	≥90
Surface treatment	Si, Al, Zr
L*(acrylic paint system)%	≥94
B *(acrylic paint system)%	≤0.35
Whiteness(acrylic paint system)%%	≥88
Hiding power(acrylic paint system)%	≥94
Relative tinting strength(acrylic paint system, comparison with R902+)%	≥96
Oil dispersibility H	≥6.0
Oil absorption g/100g	≤20
PH value of water suspensions	6-8
Resistivity of water suspensions (Ω.m)	≥60
105℃ volatile%	≤0.5
Redidue (45µm sieve)  %	≥0.1
Whiteness (compared to sample)  ∆L*( samples- standard samples)  ∆s=(∆a2+∆b2)0.5	Unlower ≥-0.3 ≤0.5



 packing specification:

Adopted plastic woven bags or paper and plastic compound bags, net weight is 25%,

or packaged as customer’s request in 500kgs or 1000kgs bags.



Storage and transportation safety:

Store in a cool, dry, well-ventilated area away from incompatible substancesWash thoroughly after handling.

Remove contaminated clothing and wash before reuse. Use with adequate ventilation.

Minimize dust generation and accumulation. Avoid contact with eyes, skin, and clothing.

 Avoid breathing dust.



Description:



1, Liangjiang Brand rutile titanium dioxide R801 introduced foreign advanced

chloride process technology for the manufacturing of Titanium Pigment,mainly manufacturing

chloride process rutile titanium pigment (referred as R type), which is very important white pigment

and ceramics glaze with excellent performance. It also has excellent whiteness, tinting strength,

hiding strength, weather resistance, heat resistance , chemical stability ,

especially no toxicity compared with other white pigments, and is widely

used in the following industries: coatings , plastic, paper making,

printing ink, chemical fiber, enamel, rubber, and cosmetics etc.



2, Comparation of chlorination process VS. Sulfuric acid process rutile titanium dioxide produced by Liangjiang:











3. Titanium dioxide anatase, titanium dioxide antase coated, titanium dioxide rutile sulfuric process, titanium dioxide rutile chlorination process:



	Titanium dioxide anatase	Titanium dioxide antase coated	titanium dioxide rutile sulfuric process	titanium dioxide rutile chlorination process
Powder type	Indoor powder	Indoor powder	Indoor /outdoor powder	Indoor /outdoor powder
Usage amount	big	seldom	big	little
Dispersibility	bad	good	good	good
Hiding power	bad	bad	good	excellent
Surface properties	bad	good	good	good
Fluidity	bad	good	good	good
Anti yellowing	bad	bad	good	excellent
Color stability	bad	Medium	better	excellent



This table shows the Liangjiang Brand chlorination process rutile titanium dioxide R920 has the highest refractive index, the highest hiding power (opacity) and achromatic force, bright whiteness, high gloss and good dispersion.



Applications:





1. Characteristic requirements for titanium dioxide in coatings and paints



Item	Building Coat
	Normal temperature drying enamel paint (Little porcelain paint type)	emulsion coatings
Outdoor	weather resistance, Hiding power, aesthetic property	weather resistance, Hiding power, aesthetic property( Little outdoor)
Indoor	Hiding power, aesthetic property	Hiding power, aesthetic property
Item	Industrial Coat
	automobile	home electrical appliances
Finish coat	weather resistance, Hiding power, aesthetic property , dispersibility	Hiding power, aesthetic property
floating coat	weather resistance, Hiding power, dispersibility
primer coat	dispersibility



Coatings industry consumes most qty of titanium dioxide, especially the rutile type. The global coating industries occupy 58% - 60%, mainly because the aspects of the performance is much better than the other white pigments. So the coating using by titanium dioxide is much higher than ordinary filler, because titanium dioxide is an integral part of in the coating, covering and adornment, its role is not only more important is to improve the physical and chemical properties of paint, bust also to improve the mechanical strength of the coating, adhesion, anticorrosive, light and weather resistance.So during of the production of coatings, It’s reasonable for us to choose the suitable type and specs!



2. Titanium dioxide quality requirements for plastic, PVC and masterbatch



Items	Performance
Hiding power	Lighter and thinner plastic products can be produced using tio2 of good hidinding power
Whiteness	Decide the appearance of the white or light color palstic products light color or white color
Dispersibility	Affect the production cost of plastic products as bad dispersibility affects the  smoothness and brightness
Weather resistance	The outdoors plastic products and plastic doors and windows require the weather resistance of tio2
Machinability	Titanium dioxide machinability is the vital key to the production efficiency and cost in the production of white masterbatch (especially the concentration variety)
Performace impact	Titanium dioxide volume of addition can affects the quality of the plastic products, especially in the condition of larger addition



Plastic is the second largest parts for titanium dioxide, occupying about 20% of the total world titanium dioxide demands, There are more than 50 brands belongs to plastic specials in the world 500 barands. Requirements for plastic, fine particle, good dispersion performance;Good heat resistance and light resistance,During the heat and the plastic forming process , the finished product does not change color in sunlight exposure and use process. Most of the particle size in plastic is fine. In the plastics, to join titanium dioxide can improve the heat resistance of plastic products, light fastness, weather resistance, make the plastic products to improve the physical and chemical performance.The strong mechanical strength can extend their life!



The effect of titanium pigment in the plastics industry mainly has two aspects, one is used as the basic white pigment, provide cover (white color); the second is to block uv light, used as uv screen disadvantages agent, used for outdoor plastic products to provide a good weatherability. For the Common plastic,it does not require the weatherability, focuses

More on the paint performance requirements.



Due to the characteristics of palstic products, When choosing different, should be taken into account in accordance with the technical requirements of plastic products, mainly to choose anatase or rutile, not same as the coatings, inks, paints.



3. Titanium dioxide quality requirements for paper production:



classification	Tio2  classification		Notes
	rutile	anatase
decorative paper	√		Higher Anti-aging requirement
High ash paper	√		Better Hiding power
Low ash paper		√	Better opacity
coinage paper		√	Better opacity



Paper is the third largest parts for titanium dioxide, As the paper filter, mainly use in high grade paper and thin paper. To join titanium dioxide in the paper can make the paper good whiteness, good gloss, high strength, thin and smooth, not penetrate when printing, light quality.Titanium dioxide for Paper generally use the titanium dioxide without the surface treatment, can have the effect of fluorescent whitening agent, increase the whiteness of paper, but laminated paper use requires the surface treatment of rutile titanium, to meet the requirements of light resistance and heat resistance.



Different paper use, different type titanium dioxide, titanium dioxide rutile, good oxidation resistance good weather resistance, mainly used for decorative paper and high ash paper of weather resistance; While titanium dioxide anatase used for the low transparency and low ash paper,not high rquirement for  weather resistance.Although chlorination process and sulfuric acid process can produce rutile type, but the chlorination process titanium pigment , whiteness, the red crystal type of content, especially the stability of the finished product is better than that of the sulfuric acid method, suitable for use in the decorative paper and high ash;And coinage in the paper and the low ash must be used titanium dioxide by sulfuric acid, in order to meet the requirements of opacity for two kinds of paper.
