Shanghai Liangjiang Titanium White Product Co., Ltd.
We aspire to be the world's leading manufacturer, supplier of raw chemical materials, to create the value of China manufacturing!
Place of Origin: | SHANGHAI |
Brand Name: | LiangJiang Brand |
Certification: | ISO/REACH/SGS/ROSH |
Model Number: | R616 |
Minimum Order Quantity: | 2 Metric Ton/Metric Tons |
---|---|
Price: | negotiation |
Packaging Details: | 25kg per plastic & paper compound bag;Pallet:40 bags per pallet (PE filmed);1x20' FCL:20 mt with pallets; 22 mt without pallets Marks:Customization available. |
Delivery Time: | Within 10 workdays after payment |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Supply Ability: | FOB Price: US $1,800 - 2,200 / Metric Ton | Get Latest Price |
Classification: | Titanium Dioxide | Model Name: | Rutile Titanium Dioxide R616 |
---|---|---|---|
MF: | Tio2 | Color: | White Powder |
Supply Ability: | 3000Ton/Tons Per Month | ElNECS No.: | 236-675-5 |
HS: | 3206111000 | ISO591-1:2000: | R2 |
ASTM D476-84: | III, IV | Surface Treatment: | Coated With Zr And Al + Special Organic Treatments |
TiO2 Content: | ≥95 | Color Index 77891: | Pigment White 6 |
High Light: | titanium dioxide powder,titanium dioxide pigment |
CAS No 13463 67 7 blue undertone rutile titanium dioxide manufacturers
1. Specifications:
Key Features:
# Excellent dispersion # High tinctorial power
# Low oil absorption # Excellent processing properties
Applications:
# polyolefin masterbatch
# Engineering plastics
1. Liangjiang brand-Rutile titanium dioxide pigment R616 is coated with zirconia and alumina in an inorganicmanner and modified with special organic finishing agent on the surface. With advantages of preferred blue color, good dispersibility, low oil absorption, excellent compatibility and outstanding rheological property under processing, the pigment is particularly applicable to plastic processing. It exhibits outstanding covering power and brightness and is useful to retain the mechanical properties of the finished plastic products. It can be widely used in polyolefin, PVC, ABS, PS, section bar, plate and tube as well as color paste and oil paint.
Main features:
has good consistency with plastic resin, excellent dispersibility, it can provide good melsedin fluidity, good yellowing resistance in high temperature, bluest bottom phase and good whiteness.
Applied range:
used in polyolefin, PVC, ABS, PS, section bar, plate and tube as well as color paste and oil paint.
Basic data:
Item | titanium dioxide(TiO2) |
CAS NO. | 13463-67-7 |
EINECS NO. | 236-675-5 |
color indexing | 77891, white pigments |
ISO591-1:2000 | R2 |
ASTM D476-84 | III, IV |

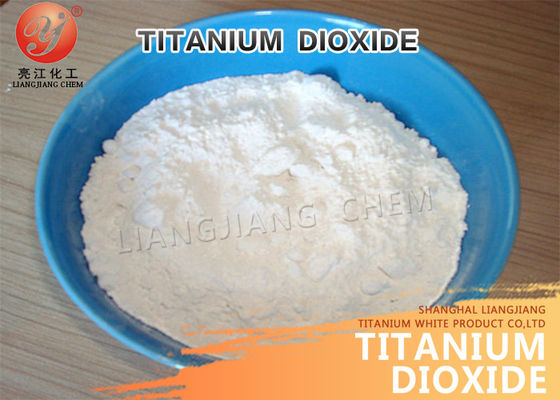

Appearance | white powder |
true specific gravity | 4.1 g/cm3 |
apparent density | 0.7~1.0 g/cm3 |
surface treatment | Coated with Zr and Al + special organic treatments |
Typical technical index( Standard:Q/VAIP1-2010)
Index | R-616 | ||
inorganic surface treatment | ZrO2,,AL2O3 | ||
organic surface treatment | yes | ||
TiO2 content % | ≥95 | ||
lightness % | ≥94.5 | ||
Tint reducing power | ≥1850 | ||
105℃ volatile matter % | ≤0.5 | ||
water soluble matter % | ≤0.5 | ||
PH value | 6.5~8.5 | ||
oil absorption (g/100g) | ≤17 | ||
electrical resistivity Ωm | ≥80 | ||
residue on 45um sieve % | ≤0.02 | ||
rutile content % | ≥97.0 | ||
Whiteness, (compared with standard sample) | No less than | ||
Oil dispersible power (Hegemann nukber) | ≥6.0 | ||
Index controlled by the company | Gardner of dry powder | ∆L* (samples- standard samples) | ≥100 |
∆b | ≤1.60 | ||
Dispersibility under high-speed stirring | μm ≤ | (Typical application under certain indigents) |
2. Description:
R616 is Rutile TiO2 pigment which is organic surface treated with inorganic Al surface coating, has good glossiness, good tinting strength, strong hiding power, and resist to atomize. Besides, it also is easy to disperse in plastic and rubber.
+Add ratio:2%~4%
+Ultra-fine pigment of high concentration
+White masterbatch

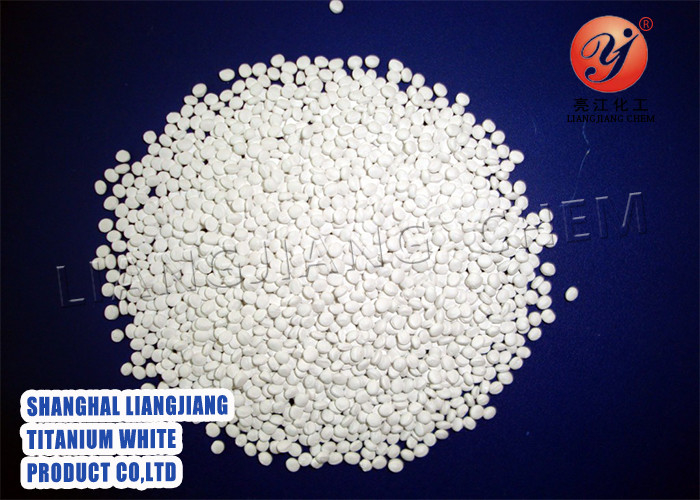

White color masterbatch:
Advantage:
+Titanium pigment content: 95%(according to customer's requirement)
+Excellent dispersion and good stability
+Smooth surface and uniform particles
+good quality
+Non-toxic and environmental protection
Usage proportioning:
According to the whiteness requirement of the product and it can be adjusted by user according to the color requirement of the product.
3. Applications:

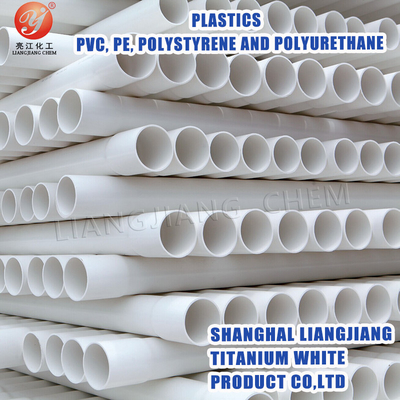

1. Titanium dioxide quality requirements for plastic, PVC and masterbatch
Item | Performance |
Hiding power | Lighter and thinner plastic products can be produced using tio2 of good hidinding power |
Whiteness | Decide the appearance of the white or light color palstic products |
Dispersibility | Affect the production cost of plastic products as bad dispersibility affects the smoothness and brightness |
Weather resistance | The outdoors plastic products and plastic doors and windows require the weather resistance of tio2 |
Machinability | Titanium dioxide machinability is the vital key to the production efficiency and cost in the production of white masterbatch (especially the concentration variety) |
Performace impact | Titanium dioxide volume of addition can affects the quality of the plastic products, especially in the condition of larger addition |
Plastic is the second largest parts for titanium dioxide, occupying about 20% of the total world titanium dioxide demands, There are more than 50 brands belongs to plastic specials in the world 500 barands. Requirements for plastic, fine particle, good dispersion performance;Good heat resistance and light resistance,During the heat and the plastic forming process , the finished product does not change color in sunlight exposure and use process. Most of the particle size in plastic is fine. In the plastics, to join titanium dioxide
can improve the heat resistance of plastic products, light fastness, weather resistance, make the plastic products to improve the physical and chemical performance.The strong mechanical strength can extend their life!
The effect of titanium pigment in the plastics industry mainly has two aspects, one is used as the basic white pigment, provide cover (white color); the second is to block uv light, used as uv screen disadvantages agent, used for outdoor plastic products to provide a good weatherability. For the Common plastic,it does not require the weatherability, focuses More on the paint performance requirements.
Due to the characteristics of palstic products, When choosing different, should be taken into account in accordance with the technical requirements of plastic products, mainly to choose anatase or rutile, not same as the coatings, inks, paints.
4. Rutile Pigments for Plastics
Using different experiments we have managed to use TiO2 pigments in plastic industry for years. They have high refractive index and scattering power in the visible region of the spectrum and impart whiteness and opacity in plastics.
When incorporated into plastics, they can provide high durability and increase quality of products.
Important applications of this pigment in plastic industry include:
• Polystyrene
• Polycarbonates
• PVC
• Polyolefins
• Other Engineering Plastics
This pigment prevents weathering and had special use in PVS profiles.
Rutile pigments used in polycarbonate minimizes the special composition of the polymer in polycarbonate which easily gets wet and decomposes. Using this pigment will meet all customers’ demands regarding optical properties or color grade.
we aspires to be the supplier of the world's leading chemical raw materials, show our value of the products made in China!
Contact Person: Mr. King Wang
Tel: 86-21-52210848 / 13916566563
Fax: 86-21-52210847
