Better dispersibility Rutile Titanium Dioxide Pigment for Coatings and paints



Better dispersibility Rutile Titanium Dioxide Pigment for Coatings and paints

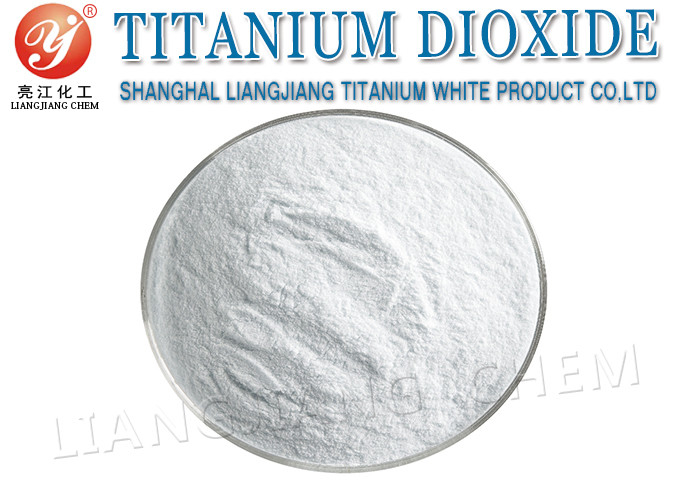

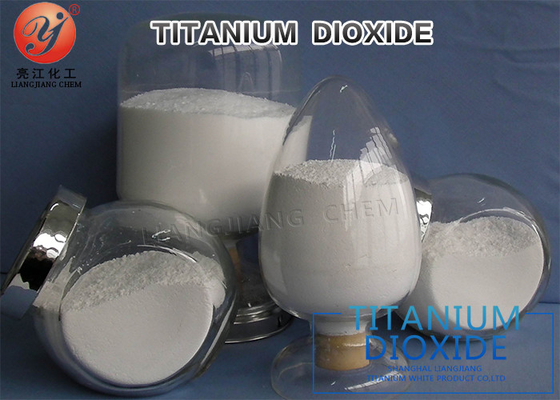

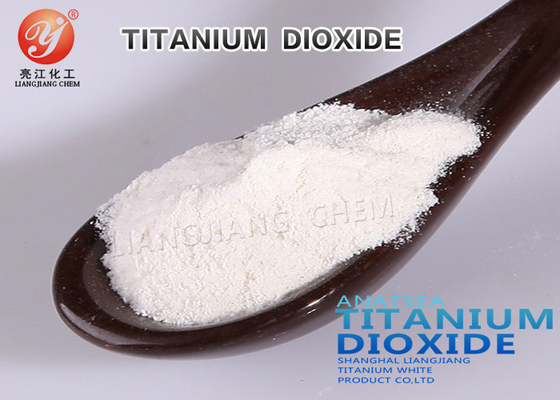

1. Liangjiang brand – rutile titanium dioxide R944, adopt ZrO and Al2O3 as inorganic coatings materials. Make surface modification with organic treating agent. And it has better whiteness, better dispersibility. It is a multifunctional, universal rutile titanium dioxide powder which can be used in many fields, including paints, plastic, pritings ink, paper etc.



2. product application:

 Mainly use in decorative paints (indoor and outdoor), powder coatings, steel paints, plastic, printing ink, industry paint, paper, rubber and leather etc.



3. main feature:

Better whiteness, better weather fastness, light resistance, widely used in many fields.

Terrific lightning power and tint reducing power. Better dispersibility in both water system and oil system.



4. Basic data

chemical name	titanium dioxide (TiO2)
CAS No.	13463-67-7
EINECS No.	236-675-5
color indexing	77891,  white pigments
ISO591-1:2000	R2
ASTM D476-84	II
appearance	white powder
true specific gravity	4.0 g/cm3
apparent density	0.7~1.0 g/cm3
surface treatment	Coated with Zr and Al + special organic treatments
Factory	Shanghai liangjiang titanium white products co.,ltd



5. Typical technical index( Standard:Q/VAIP1-2010)



Index	R-944
TiO2 content %	≥94.0
rutile content %	≥98.0
Whiteness (compared to sample)  ∆L*( samples- standard samples)  ∆s=(∆a2+∆b2)0.5	Unlower ≥-0.3 ≤0.5
105ºC volatile matter%	≤0.5
water soluble matter %	≤0.5
residue on 45um sieve%	≤0.03
PH value	6.0-8.5
lightness %	≥94
oil absorption g/100g	≤20
reducing power	≥1800



packing specification:

Adopted plastic woven bags or paper and plastic compound bags, net weight is 25%, or packaged as customer’s request in 500kgs or 1000kgs bags.



 Applications:



1. Characteristic requirements for titanium dioxide in coatings and paints



Item	Building Coat
	Normal temperature drying enamel paint (Little porcelain paint type)	emulsion coatings
Outdoor	weather resistance, Hiding power, aesthetic property	weather resistance, Hiding power, aesthetic property( Little outdoor)
Indoor	Hiding power, aesthetic property	Hiding power, aesthetic property
item	Industrial Coat
	automobile	home electrical appliances
Finish coat	weather resistance, Hiding power, aesthetic property , dispersibility	Hiding power, aesthetic property
floating coat	weather resistance, Hiding power, dispersibility
primer coat	dispersibility

Coatings industry consumes most qty of titanium dioxide, especially the rutile type. The global coating industries occupy 58% - 60%, mainly because the aspects of the performance is much better than the other white pigments. So the coating using by titanium dioxide is much higher than ordinary filler, because titanium dioxide is an integral part of in the coating, covering and adornment, its role is not only more important is to improve the physical and chemical properties of paint, bust also to improve the mechanical strength of the coating, adhesion, anticorrosive, light and weather resistance.So during of the production of coatings, It’s reasonable for us to choose the suitable type and specs!



2.  Titanium dioxide quality requirements for plastic, PVC and masterbatch



Item	Performance
Hiding power	Lighter and thinner plastic products can be produced using tio2 of good hidinding power
Whiteness	Decide the appearance of the white or light color palstic products light color or white color
Dispersibility	Affect the production cost of plastic products as bad dispersibility affects the  smoothness and brightness
Weather resistance	The outdoors plastic products and plastic doors and windows require the weather resistance of tio2
Machinability	Titanium dioxide machinability is the vital key to the production efficiency and cost in the production of white masterbatch (especially the concentration variety)
Performace impact	Titanium dioxide volume of addition can affects the quality of the plastic products, especially in the condition of larger addition

Plastic is the second largest parts for titanium dioxide, occupying about 20% of the total world titanium dioxide demands, There are more than 50 brands belongs to plastic specials in the world 500 barands. Requirements for plastic, fine particle, good dispersion performance;Good heat resistance and light resistance,During the heat and the plastic forming process , the finished product does not change color in sunlight exposure and use process. Most of the particle size in plastic is fine. In the plastics, to join titanium dioxide

can improve the heat resistance of plastic products, light fastness, weather resistance, make the plastic products to improve the physical and chemical performance.The strong mechanical strength can extend their life!

The effect of titanium pigment in the plastics industry mainly has two aspects, one is used as the basic white pigment, provide cover (white color); the second is to block uv light, used as uv screen disadvantages agent, used for outdoor plastic products to provide a good weatherability. For the Common plastic,it does not require the weatherability, focuses More on the paint performance requirements.

Due to the characteristics of palstic products, When choosing different, should be taken into account in accordance with the technical requirements of plastic products, mainly to choose anatase or rutile, not same as the coatings, inks, paints.



3. Titanium dioxide quality requirements for paper production:



classification	Tio2 classification		remark
	Rutile	Anatase
decorative paper	√		Higher Anti-aging requirement
High ash paper	√		Better Hiding power
Low ash paper		√	Better opacity
coinage paper		√	Better opacity

Paper is the third largest parts for titanium dioxide, As the paper filter, mainly use in high grade paper and thin paper. To join titanium dioxide in the paper can make the paper good whiteness, good gloss, high strength, thin and smooth, not penetrate when printing, light quality.Titanium dioxide for Paper generally use the titanium dioxide without the surface treatment, can have the effect of fluorescent whitening agent, increase the whiteness of paper, but laminated paper use requires the surface treatment of rutile titanium, to meet the requirements of light resistance and heat resistance.

Different paper use, different type titanium dioxide, titanium dioxide rutile, good oxidation resistance good weather resistance, mainly used for decorative paper and high ash paper of weather resistance; While titanium dioxide anatase used for the low transparency and low ash paper,not high rquirement for  weather resistance.Although chlorination process and sulfuric acid process can produce rutile type, but the chlorination process titanium pigment , whiteness, the red crystal type of content, especially the stability of the finished product is better than that of the sulfuric acid method, suitable for use in the decorative paper and high ash;And coinage in the paper and the low ash must be used titanium dioxide by sulfuric acid, in order to meet the requirements of opacity for two kinds of paper.



Description:



1, Liangjiang Brand rutile titanium dioxide R994 is manufactured through sulfuric acid process, using high-quality titanium ore as the main raw material, get finished products after acidolysis, hydrolysis, calcine,  and surface treatment.



2, Liangjiang brand rutile titanium dioxide R944, has compact crystal structure, and it is stable in light, so it has better weather fastness, water resistence, and not easily to become yellow. It also has better hiding power, reducing power.



3, Comparation of chlorination process VS. Sulfuric acid process rutile titanium dioxide produced by Liangjiang:







4. Titanium dioxide anatase, titanium dioxide antase coated, titanium dioxide rutile sulfuric process, titanium dioxide rutile chlorination process:



	Anatase TiO2	Coated Anatase Tio2	Sulfuric acid process rutile Tio2	Chloride process rutile TiO2
powder	Indoor powder	Indoor powder	Indoor/outdoor powder	Indoor/outdoor powder
Usage amount	large	little	large	less
Dispersibility	bad	good	good	good
Covering power	bad	bad	good	better
Surface properties	bad	good	good	Good
liquidity	bad	good	good	good
Yellowing resistance	bad	bad	good	better
Color stability	bad	normal	good	better



Competitive Advantage:

1.Know the customers needs

We have 10 years of operating experience in this industry, We have 5 years cooperation with all kinds of brand cooperation in foreign trade import and export, We know our understandings for customers’ needs, our considerate service, think what they want to or they never think!



2.Faster delivery time

Our staff, full of passion, with the most reasonable, the most efficient labor, supply the best samples and goods to the clients at faster speed!



3.Strong supply capacity

Whatever big orders or small orders, we will grasp the opportunity the customers give us , Shanghai liangjiang has its own factory, we can guarantee the completion of orders smoothly, at the same time of improving quality, and constantly improve the quality.



4.Honesty is the best policy

Many years of efforts, we strict with themselves, guarantee the customer receive the sample quality same as the goods, we cherish the samples and big goods into every client, solve the smallest friction between the customers, eventually to achieve a win-win result.



5.Strong Research and Development team

In order to make us more core competitiveness in the industry, we have also has carried on the research and development for the other fillers, such as barium sulfate( precipitation / superfine), calcium carbonate (light/heavy), manganese carbonate series products, improve our competitive advantages in the industry, meet the requirements of customers of high, medium and low, service the different needs of various industries, we aspires to be the supplier of the world's leading chemical raw materials, show our value of the products made in China!
